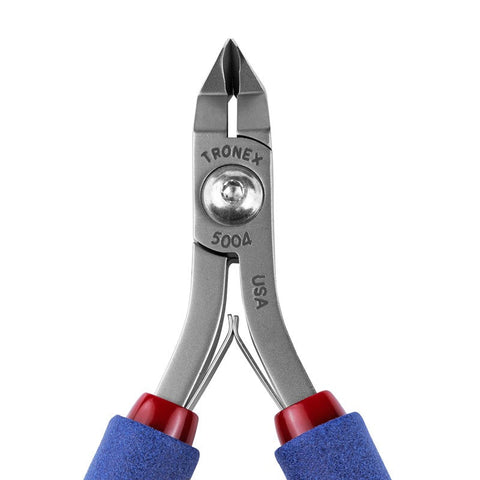

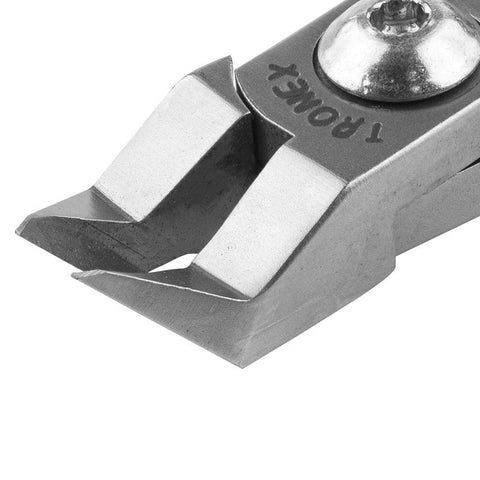

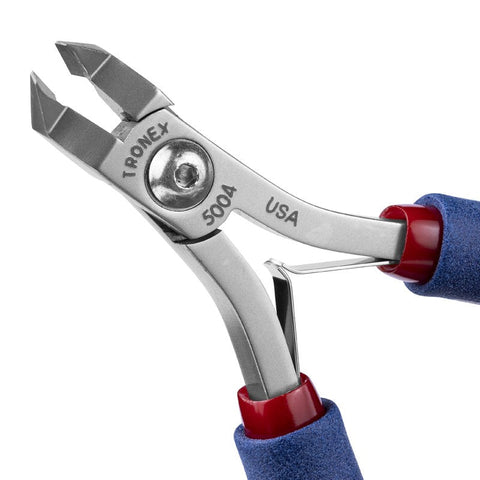

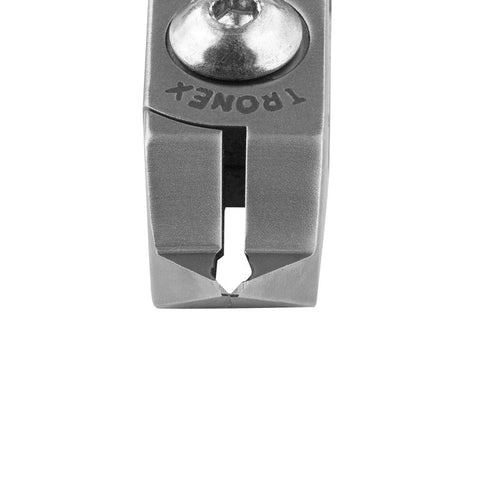

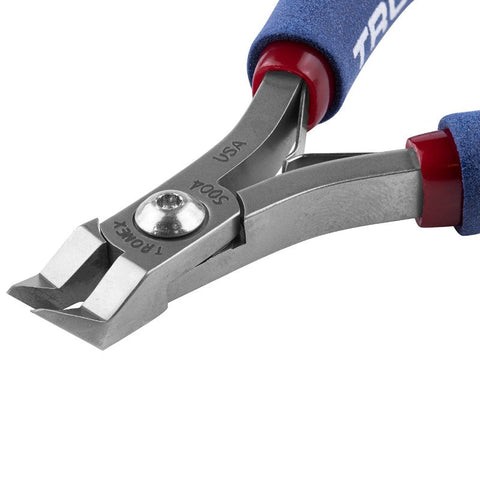

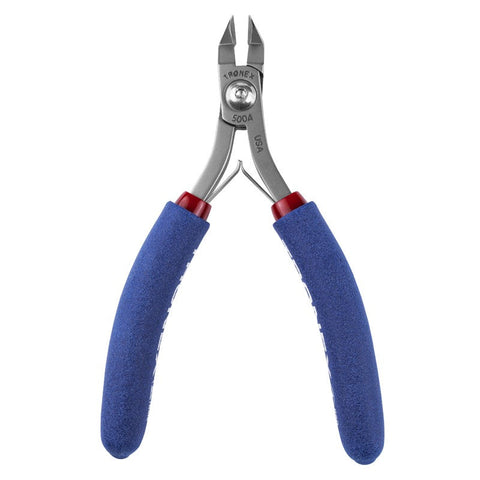

5004 - Angulated 50° Large Taper Flush Cutter

• Application: Cutting edges at an angle to the board are preferred when access to the object being cut is very limited or when the work area is very crowded. 5004 features a large cutting edge with a pointed tip and short jaw for enhanced control.

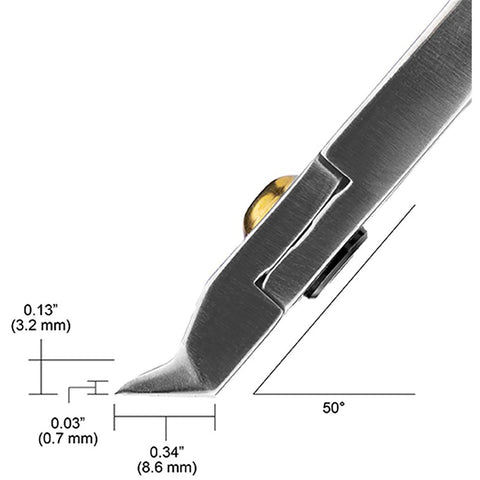

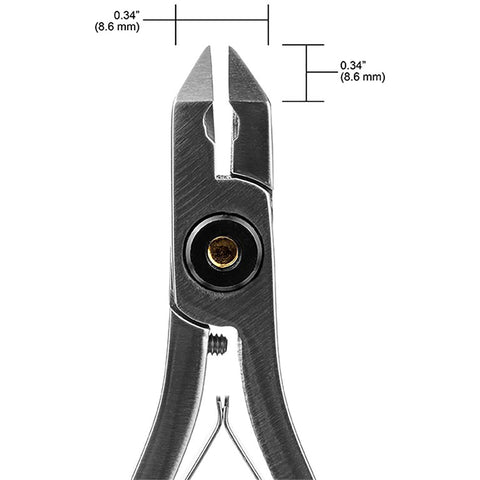

• Head Shape: Angulated 50° Large Taper Head
• Profile: Relief
• Material: Carbon Steel
• Material Hardness: 62-63 HRC
• Cutting Edge: Flush
• Cutting Capacity (soft copper wire): .008" - .031" (.2mm – 0.8mm); 32-20 AWG
• Handle Length: Standard
• Handle Grips: Cushion Double Sheathed, ESD Safe
  • RTT Resistance: <1 x 10¹¹ ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials
• Overall Length: 4.7" (119mm)

Please visit our "Selecting a Cutter" guide to help in the selection of the right cutter.
