Tronex Extra Fine Tip Razor Flush Cutters - 5071 and 7071

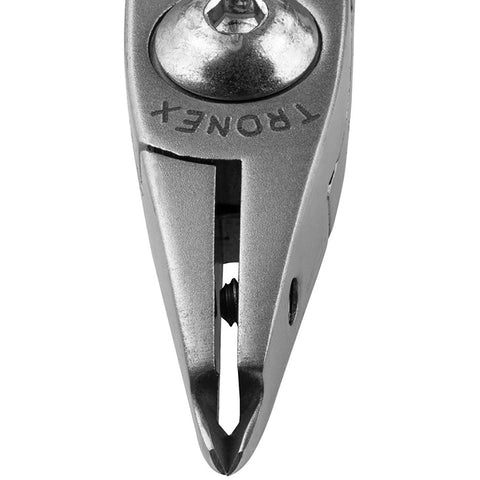

Make precise cuts in ultra-fine soft copper wire with sub-miniature tips designed for delicate work in confined spaces. The exceptionally small cutting edges help you reach cutting points around closely spaced components, making these cutters especially useful for microscope-assisted electronics assembly and fine wire trimming.

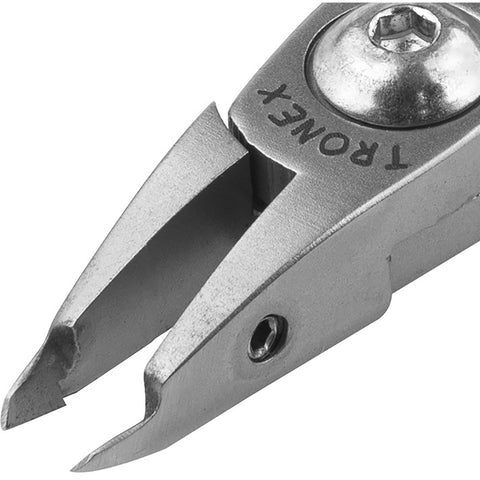

Razor Flush cutting edges have no bevel, producing a nearly flat wire end with virtually no raised material or pinch. A built-in set screw stop helps protect the finely finished cutting edges.

Choose standard handles for a more compact tool or long ergonomic handles for a larger gripping area. Both variants feature the same extra-fine cutting head and soft copper wire capacity, along with hardened carbon steel construction and ESD-safe cushioned grips.

Features and Benefits

• Extra-Fine Cutting Tips: Provide access to small cutting points around delicate components and tightly spaced assemblies.

• Sub-Miniature Head: Suited to detailed work where larger cutter heads can obstruct access.

• Razor Flush Cutting Edges: Leave virtually no raised material or pinch on the cut end of soft copper wire.

• Protective Set Screw Stop: Helps protect the precision cutting edges.

• ESD-Safe Cushion Grips: Double-sheathed grips provide cushioned handling for detailed electronics work.

• Two Handle Options: Choose standard or long ergonomic handles to suit your grip preference.

Available Variants

Tronex 5071 - Standard Handles

Measures 4.7 inches overall and features standard-length handles. This is the more compact option for users who prefer a shorter tool.

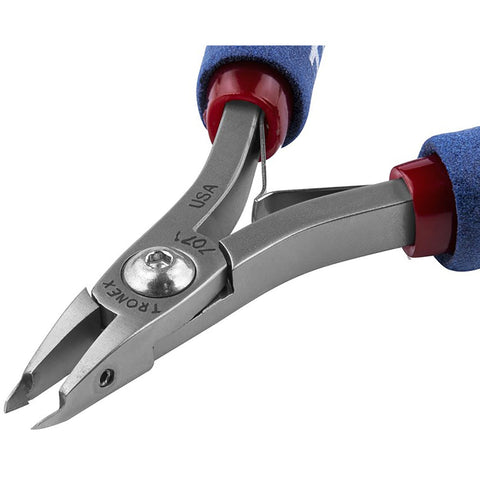

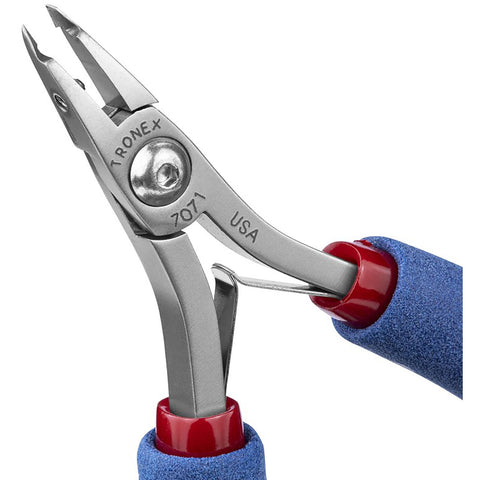

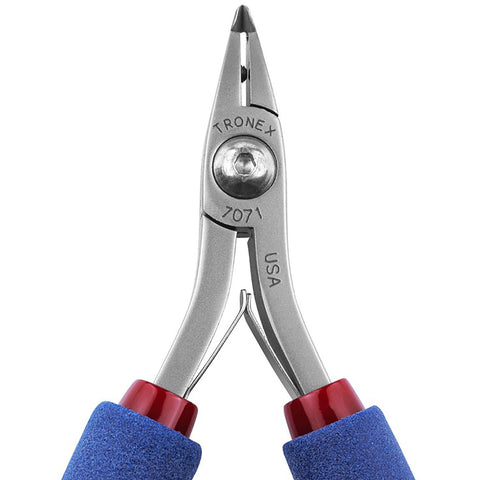

Tronex 7071 - Long Ergonomic Handles

Measures 5.7 inches overall and features longer ergonomic handles. The extended handles provide a larger gripping area without changing the cutting head or wire capacity.

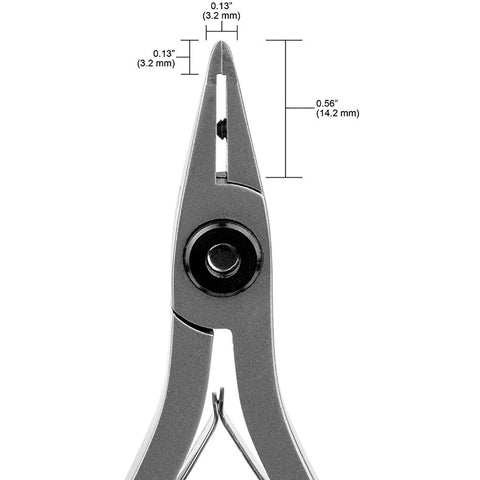

Both models have a 0.56-inch tip length and the same Razor Flush cutting edges. Select your preferred handle style from the available options.

Specifications

• Brand: Tronex

• Models: 5071 and 7071

• Tool Type: Extra Fine Tip Cutter

• Head Shape: Sub-Miniature

• Head Profile: Standard

• Cutting Edge: Razor Flush

• Material: Hardened Carbon Steel

• Material Hardness: 62 to 63 HRC

• Tip Length: 0.56 inch or approximately 14mm

• Soft Copper Wire Capacity: 0.002 to 0.016 inch

• Metric Cutting Capacity: 0.05 to 0.4mm

• Specified Wire Gauge Range: 40 to 26 AWG

• 5071 Overall Length: 4.7 inches

• 7071 Overall Length: 5.7 inches

• Grip Type: Double-Sheathed ESD-Safe Cushion Grips

• Country of Manufacture: USA

Applications

Suitable for microscope-assisted electronics work, precision assembly, and trimming ultra-fine soft copper wire. The small cutting head is particularly useful when surrounding components restrict access to the cutting point.

All cutting capacities apply to soft copper wire. Use these cutters within their specified capacity and select a different tool for harder materials.

Frequently Asked Questions

What is the difference between the 5071 and 7071?

The 5071 has standard handles and measures 4.7 inches overall. The 7071 has long ergonomic handles and measures 5.7 inches overall. Both models have the same cutting head, tip length, and soft copper wire capacity.

What type of wire can these cutters cut?

Both models are rated for soft copper wire from 0.002 to 0.016 inch in diameter, approximately 0.05 to 0.4mm. They are designed for fine wire work rather than general-purpose cutting.

Are these cutters suitable for microscope work?

Yes. Their exceptionally small cutting edges and fine tips are suited to detailed cutting tasks performed under a microscope.

What does Razor Flush mean?

Razor Flush edges have no cutting bevel. They produce a nearly flat wire end with virtually no raised material or pinch.

Can these cutters be used on steel or memory wire?

The stated capacity applies only to soft copper wire. It does not establish suitability for steel, memory wire, or other harder materials. Use a cutter specifically rated for those materials.

Are both handle options ESD safe?

Yes. Both models have double-sheathed, ESD-safe cushioned grips.

Where are these cutters manufactured?

Both the Tronex 5071 and 7071 are manufactured in the USA.

Please visit our "Selecting a Cutter" guide to help in the selection of the right cutter.

All Cutting Capacity Ratings are for soft copper wire.
