Rotational Bench Pin: Dovetail Rotating Base Instructions

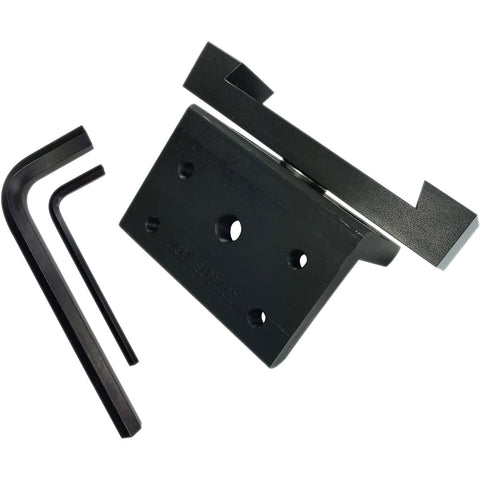

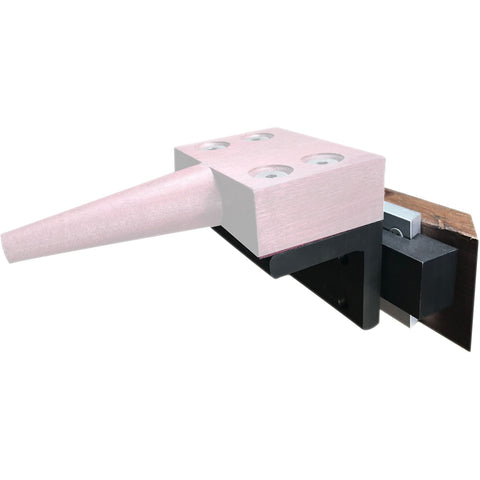

For use with the Jayne Redman® Rotational Bench Pin The Jayne Redman® Dovetail Rotating Base is designed for use with the Dovetail Mounting Plate, allowing for quick and easy removal of your Work Surface. Simply lift and slide the Bench Pin off the Mounting Plate to restore a flat bench front when needed.

Key Features & Usage:

• 360° Rotation: Loosen the 3/8" socket head screw using the large hex wrench (included) to rotate your work surface to any angle, then tighten to lock in place.
• Quick Removal: Effortlessly lift and slide the Bench Pin off the Dovetail Mounting Plate for an unobstructed bench space.
• Easy Attachment: Use the small hex wrench (included) to securely attach any Jayne Redman® Work Surface to the top of the Rotating Base.
• Universal Compatibility: Works seamlessly with any dovetail mounting system, including GRS®.

This versatile and efficient system provides flexibility and convenience for jewelers and metalworkers, optimizing your bench workspace for precision and ease.

Micro-Tools makes every attempt to provide accurate information for each item. Actual packaging and/or specifications may be slightly different from the information and picture provided.
