Swanstrom® - Disc Cutter, Round Inch, 1.5” and 1.625” for use in a Hydraulic Press

$244.26

Achieve precise, clean cuts with ease using the Swanstrom® Disc Cutter—the top-performing tool in its class. Manufactured in the USA, this disc cutter is built to deliver decades of consistent service. a

The top and bottom plates, along with all punches, are made of S7 shock-resistant tool steel, through-hardened to 55 HRC for exceptional durability.

Precision and Performance

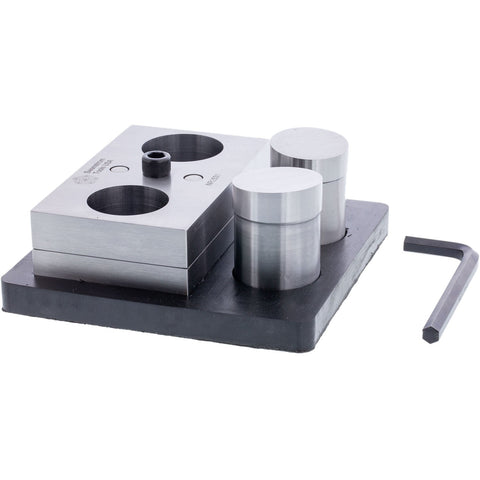

The Swanstrom® Disc Cutter features precision-ground punches that produce smooth edges with minimal cleanup. Tight tolerances between the punches and the spring-loaded die plate ensure clean cuts while extending the tool’s service life.The die plate securely clamps metal in place, preventing distortion and keeping your hands safe. Its easy-open design allows for quick adjustments to accommodate various materials. For best results, place a shim of equal thickness to your cutting material on the opposite side to maintain balance.

Versatility

Designed for soft materials up to 10 gauge (2.59mm).
Specifically engineered for use in a hydraulic press and should ONLY be used in a hydraulic or arbor press.

Product Details

Dimensions: 5"W x 3"D x 1-1/2"H
Brand: Swanstrom
Shipping Weight: 9.233 lbs (4.188kg)
Country of Origin: United States

Features & Maintenance

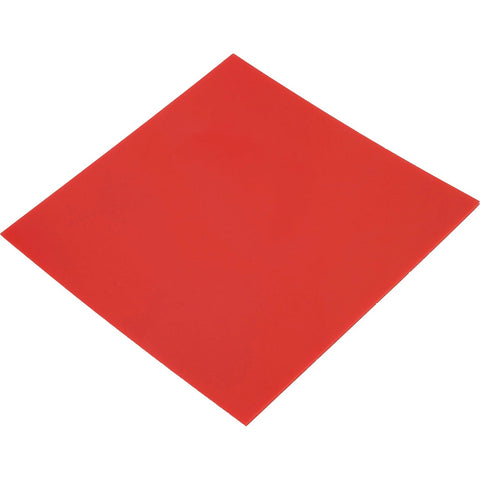

IMPORTANT: Always position a shim of equal thickness to the material being cut on the opposite side to maintain plate balance and achieve perpendicular cuts.

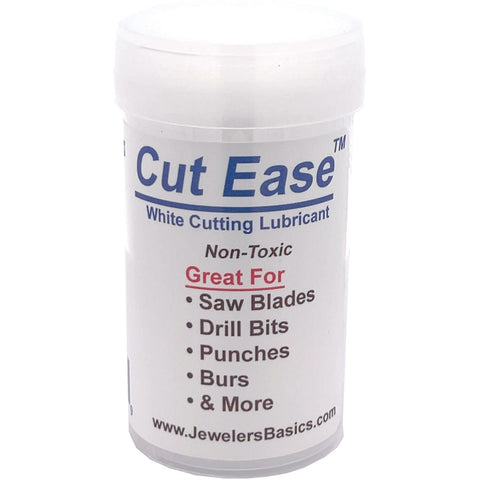

Apply Jeweler's Basics® - Cut Ease to cutting edges for smooth, efficient cuts and long-lasting performance.

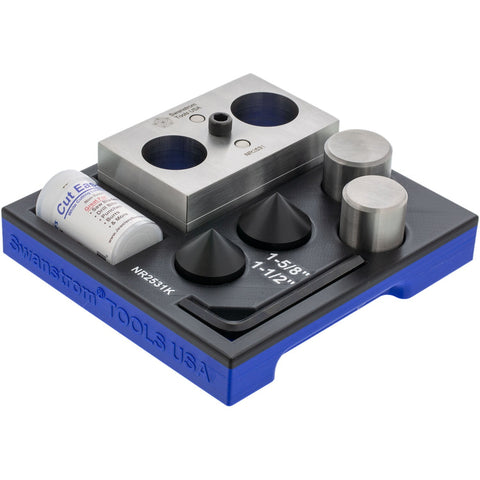

Kit Includes:

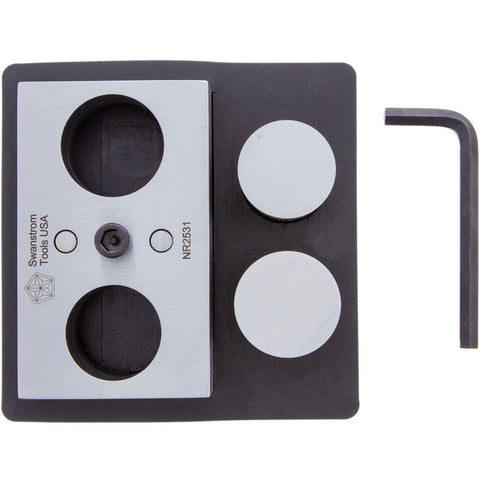

One 1-1/2" (38.1mm) diameter punch
One 1-5/8" (41.28mm) diameter punch
