Swanstrom® - Metric Round Disc Cutter - 3mm - 32mm

$293.42

Achieve precise, clean cuts with ease using the Swanstrom® Disc Cutter—the top-performing tool in its class. Manufactured in the USA, this disc cutter is built to deliver decades of consistent service.

Punches smaller than 25mm are crafted from 4140 tool steel and case-hardened to 57 HRC.
The top and bottom plates, along with 25mm and larger punches, are made of S7 shock-resistant tool steel, through-hardened to 55 HRC for exceptional durability.

Precision and Performance

The Swanstrom® Disc Cutter features precision-ground punches that produce smooth edges with minimal cleanup. Tight tolerances between the punches and the spring-loaded die plate ensure clean cuts while extending the tool’s service life.The die plate securely clamps metal in place, preventing distortion and keeping your hands safe. Its easy-open design allows for quick adjustments to accommodate various materials. For best results, place a shim of equal thickness to your cutting material on the opposite side to maintain balance.

Versatility

Ideal for soft materials up to 16 gauge (1.29mm) with a mallet and up to 10 gauge (2.59mm) with a Bonny Doon hydraulic press.

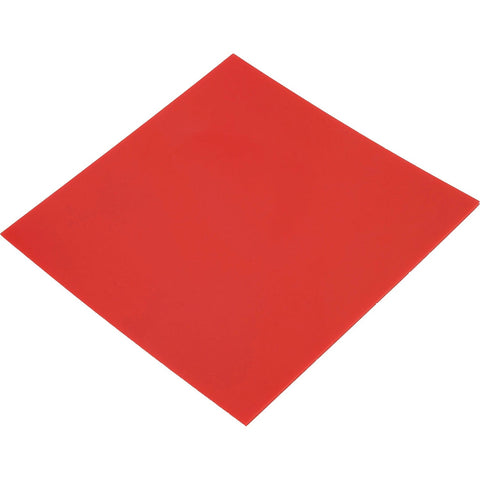

Use a 1/16" thick, 95-durometer urethane pad (not included) under the cutters to minimize noise, support the tool, protect your work surface, and ensure precise cuts.

Product Details

Brand: Swanstrom
Shipping Weight: 6.9 lbs (3.13kg)
Country of Origin: United States

Features & Maintenance

IMPORTANT: Always position a shim of equal thickness to the material being cut on the opposite side to maintain plate balance and achieve perpendicular cuts.
Use only brass-head mallets to strike the punches, preserving their surface integrity.

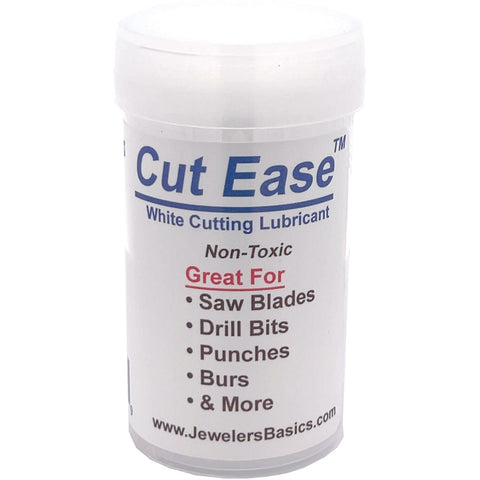

Apply Jeweler's Basics® - Cut Ease to cutting edges for smooth, efficient cuts and long-lasting performance.

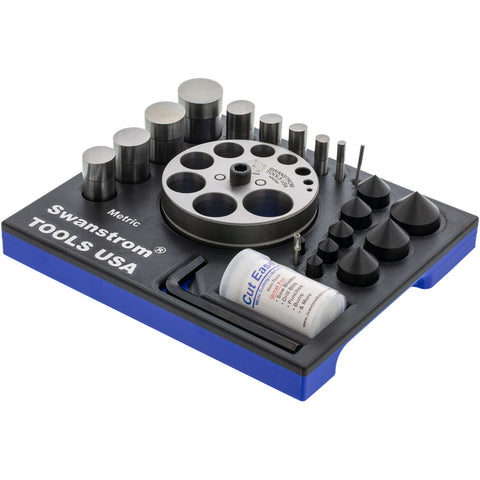

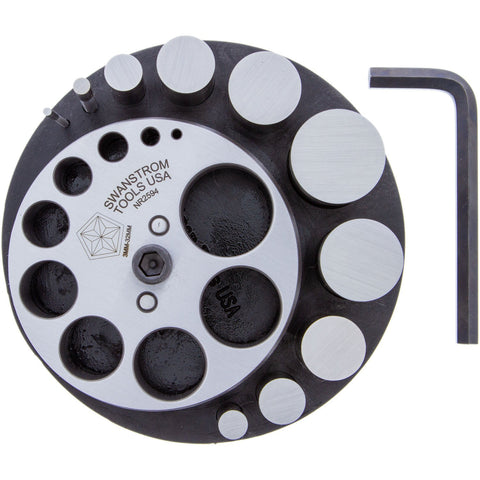

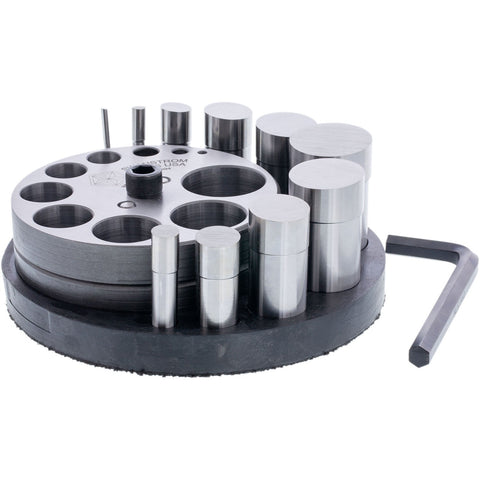

Kit Includes:

Two die plates (4-1/2" dia. x 1-3/4" H / 107.9 x 44.5mm)
10 punches (each 2" / 50.8mm tall):
- 3mm (.118") dia. (NR259403)
- 6mm (.236") dia. (NR259406)
- 10mm (.394") dia. (NR259410)
- 13mm (.512") dia. (NR259413)
- 16mm (.630") dia. (NR259416)
- 20mm (.787") dia. (NR259420)
- 22mm (.866") dia. (NR259422)
- 25mm (.984") dia. (NR259425)
- 28mm (1.10") dia. (NR259428)
- 32mm (1.26") dia. (NR259432)
One Hex wrench
One strong rubber base (5-7/8" dia. / 149.2mm) for secure cutter and die storage (NR25091)
