Swanstrom® - Oval Shape Disc Cutter - Small Sizes

Achieve precise, clean cuts with ease using the Swanstrom® Oval-Shape Cutter—the top-performing tool in its class. Manufactured in the USA, this cutter is built to deliver decades of consistent service.

• The top and bottom plates, along with all punches, are made of S7 shock-resistant tool steel, through-hardened to 55 HRC for exceptional durability.

Precision and Performance

The Swanstrom® Shape Cutter features precision-ground punches that produce smooth edges with minimal cleanup. Tight tolerances between the punches and the spring-loaded die plate ensure clean cuts while extending the tool’s service life.The die plate securely clamps metal in place, preventing distortion and keeping your hands safe. Its easy-open design allows for quick adjustments to accommodate various materials. For best results, place a shim of equal thickness to your cutting material on the opposite side to maintain balance.

Versatility

• Designed for soft materials up to 16 gauge (1.29mm) when using a mallet and up to 10 gauge (2.59mm) when using a Bonny Doon hydraulic press.

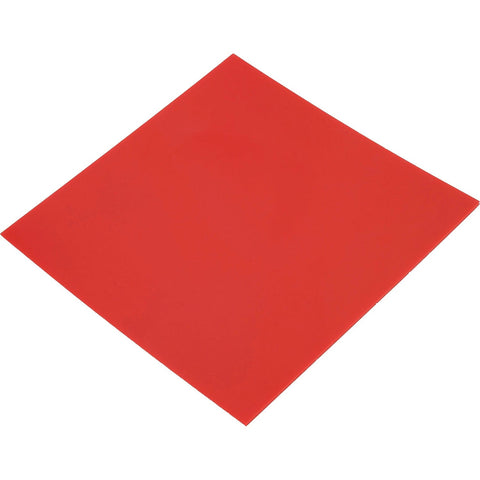

• Use a urethane pad (1/16" thick, 95 durometer; not included) under the cutters to reduce noise, support the punches, protect your work surface, and ensure crisp cuts.

Product Details

• Dimensions: 3"W x 5"D x 1-1/16"H (76.2 x 127 x 26.99mm)
• Brand: Swanstrom
• Shipping Weight: 6.038 lbs (2.739kg)
• Country of Origin: United States

Features & Maintenance

• IMPORTANT: Always position a shim of equal thickness to the material being cut on the opposite side to maintain plate balance and achieve perpendicular cuts.
• Use only brass-head mallets to protect the surfaces of your punches when cutting.

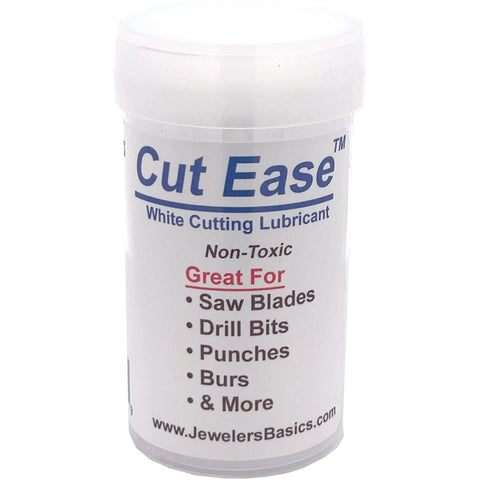

• Apply Jeweler's Basics® - Cut Ease to cutting edges for smooth, efficient cuts and long-lasting performance.

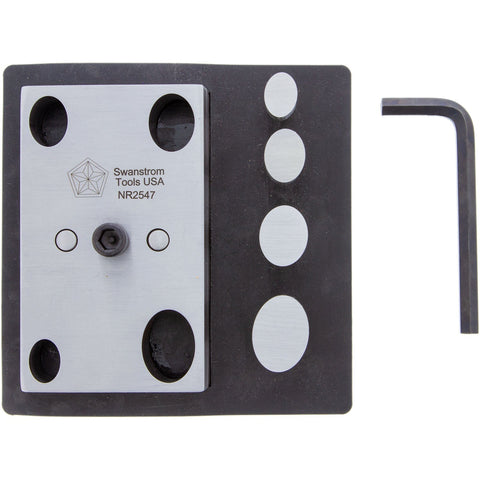

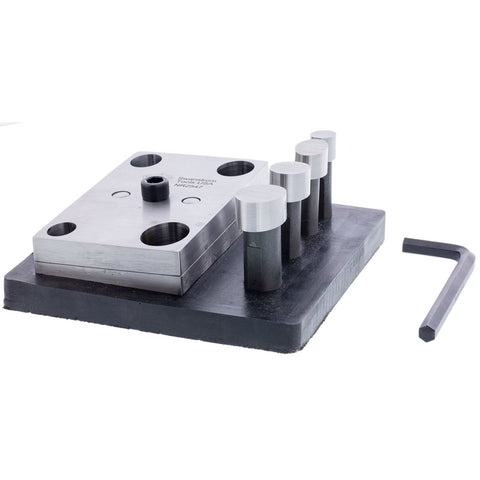

Kit Includes:

• Two die plates
• Four punches, each 2" (50.8mm) tall:
  • 1/2" x 23/32" (12.7 x 18.25mm)
  • 5/8" x 13/16" (15.87 x 20.63mm)
  • 3/4" x 15/16" (19.05 x 23.81mm)
  • 7/8" x 1-3/16" (22.22 x 30.16mm)
• One Hex wrench
• A strong rubber base (6" x 6" x 1/2" / 152.4 x 152.4 x 12.7mm) that conveniently holds the cutter and dies
