Swanstrom - Disc Cutter, Round Inch, 2” for use in a Hydraulic Press

$228.02

Achieve precise, clean cuts with ease using the Swanstrom 2" Disc Cutter—the top-performing tool in its class. Manufactured in the USA, this disc cutter is built to deliver decades of consistent service.

The top and bottom plates, along with all punches, are made of S7 shock-resistant tool steel, through-hardened to 55 HRC for exceptional durability.

Precision and Performance

The Swanstrom Disc Cutter features precision-ground punches that produce smooth edges with minimal cleanup. Tight tolerances between the punches and the spring-loaded die plate ensure clean cuts while extending the tool’s service life.

The die plate securely clamps metal in place, preventing distortion and keeping your hands safe. Its easy-open design allows for quick adjustments to accommodate various materials. For best results, place a shim of equal thickness to your cutting material on the opposite side to maintain balance.

Versatility

Designed for soft materials up to 10 gauge (2.59mm).
Specifically engineered for use in a Bonny Doon hydraulic press and should ONLY be used in a hydraulic or arbor press.

Product Details

Dimensions: 3"W x 5"D x 1-1/2"H (76.2 x 127 x 38.1mm)
Brand: Swanstrom
Shipping Weight: 9.2 lbs (4.173kg)
Country of Origin: United States

Features & Maintenance

IMPORTANT: Always position a shim of equal thickness to the material being cut on the opposite side to maintain plate balance and achieve perpendicular cuts.
Apply Jeweler's Basics® - Cut Ease to cutting edges for smooth, efficient cuts and long-lasting performance.

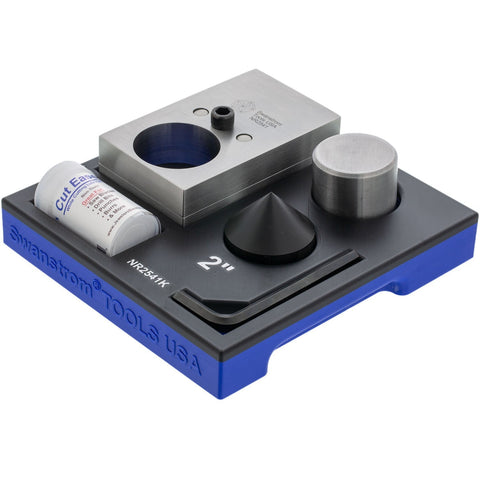

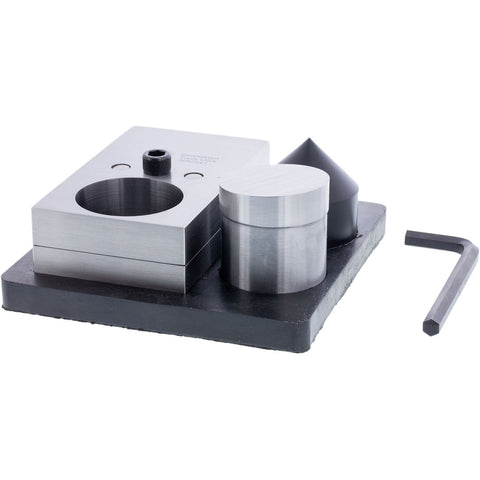

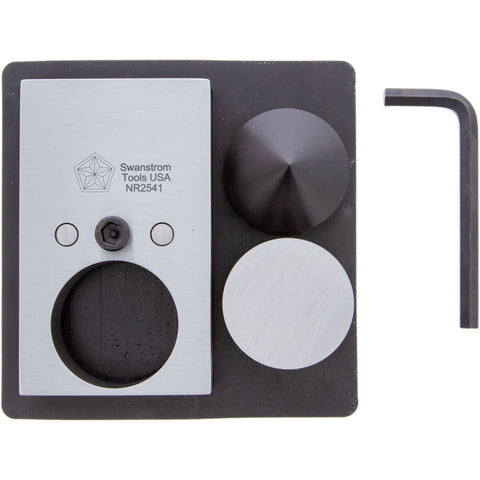

Kit Includes:

One 2" (50.8mm) diameter punch, 2" tall
One 2" (50.8mm) center positioning die
Two die plates
One Allen wrench

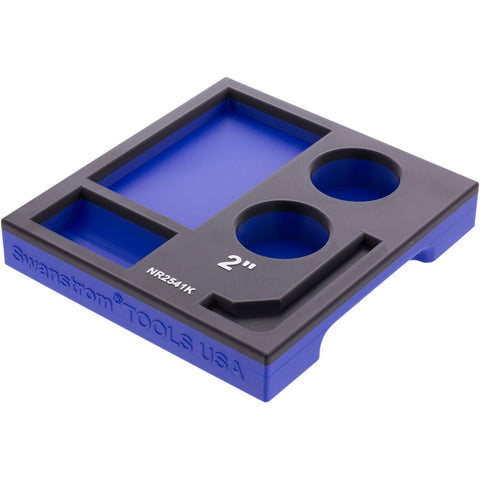

A strong rubber base that conveniently holds the cutter and dies
