Swanstrom - Metric Round Disc Cutter - 3mm - 32mm

Achieve precise, clean cuts with ease using the Swanstrom Disc Cutter—the top-performing tool in its class. Manufactured in the USA, this disc cutter is built to deliver decades of consistent service.

• Punches smaller than 25mm are crafted from 4140 tool steel and case-hardened to 57 HRC.

• The top and bottom plates, along with 25mm and larger punches, are made of S7 shock-resistant tool steel, through-hardened to 55 HRC for exceptional durability.

Precision and Performance

The Swanstrom Disc Cutter features precision-ground punches that produce smooth edges with minimal cleanup. Tight tolerances between the punches and the spring-loaded die plate ensure clean cuts while extending the tool’s service life.

The die plate securely clamps metal in place, preventing distortion and keeping your hands safe. Its easy-open design allows for quick adjustments to accommodate various materials. For best results, place a shim of equal thickness to your cutting material on the opposite side to maintain balance.

Versatility

• Ideal for soft materials up to 16 gauge (1.29mm) with a mallet and up to 10 gauge (2.59mm) with a Bonny Doon hydraulic press.

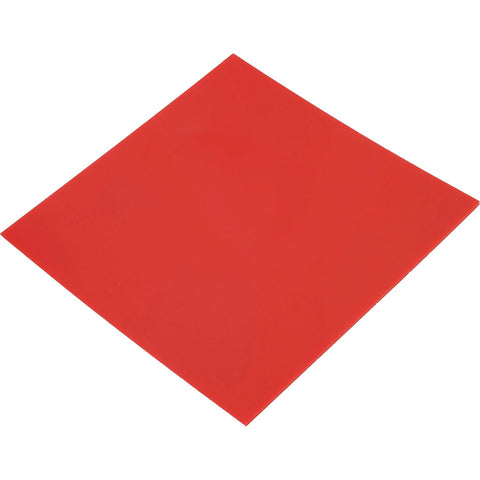

• Use a 1/16" thick, 95-durometer urethane pad (not included) under the cutters to minimize noise, support the tool, protect your work surface, and ensure precise cuts.

Product Details

• Brand: Swanstrom

• Shipping Weight: 6.9 lbs (3.13kg)

• Country of Origin: United States

Features & Maintenance

• IMPORTANT: Always position a shim of equal thickness to the material being cut on the opposite side to maintain plate balance and achieve perpendicular cuts.

• Use only brass-head mallets to strike the punches, preserving their surface integrity.

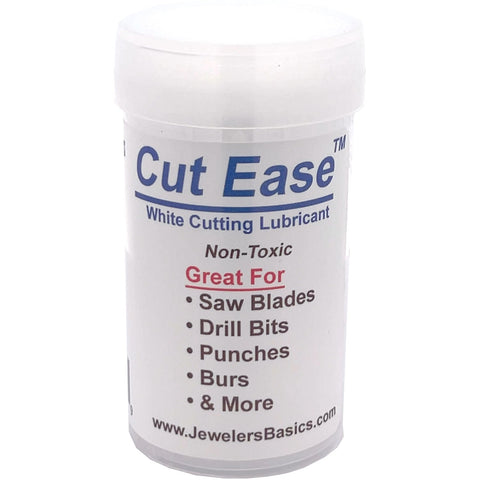

• Apply Jeweler's Basics® - Cut Ease to cutting edges for smooth, efficient cuts and long-lasting performance.

Kit Includes:

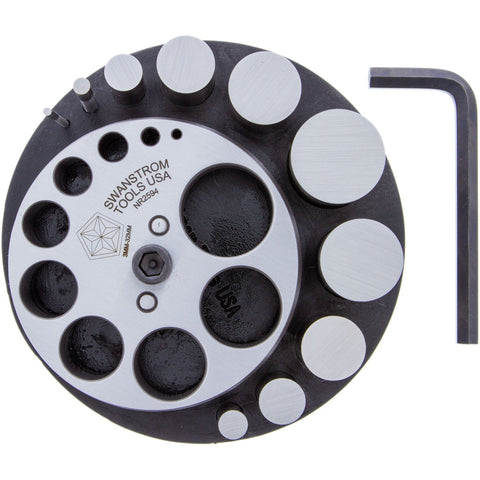

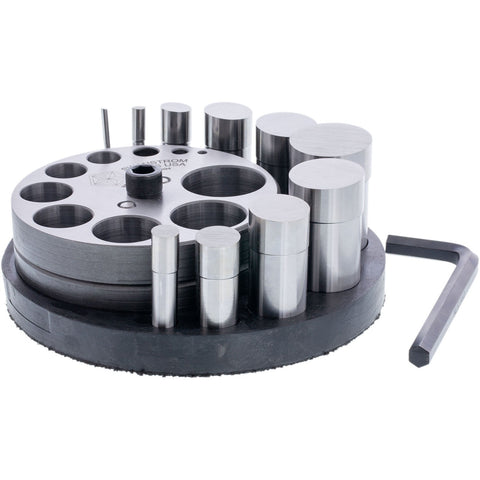

• Two die plates (4-1/2" dia. x 1-3/4" H / 107.9 x 44.5mm)

• 10 punches (each 2" / 50.8mm tall):

  • 3mm (.118") dia. (NR259403)

  • 6mm (.236") dia. (NR259406)

  • 10mm (.394") dia. (NR259410)

  • 13mm (.512") dia. (NR259413)

  • 16mm (.630") dia. (NR259416)

  • 20mm (.787") dia. (NR259420)

  • 22mm (.866") dia. (NR259422)

  • 25mm (.984") dia. (NR259425)

  • 28mm (1.10") dia. (NR259428)

  • 32mm (1.26") dia. (NR259432)

• One Hex wrench

• One strong rubber base (5-7/8" dia. / 149.2mm) for secure cutter and die storage (NR25091)
