Swanstrom - Heart Shape Disc Cutter

$396.53

Achieve precise, clean cuts with ease using the Swanstrom Heart-Shape Cutter—the top-performing tool in its class. Manufactured in the USA, this cutter is built to deliver decades of consistent service.

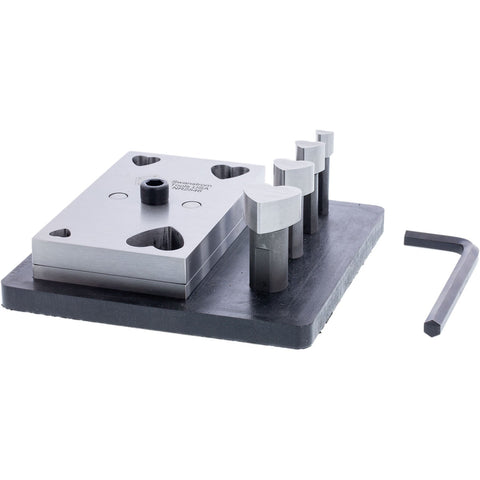

The top and bottom plates, along with all punches, are made of S7 shock-resistant tool steel, through-hardened to 55 HRC for exceptional durability.

Precision and Performance

The Swanstrom Shape Cutter features precision-ground punches that produce smooth edges with minimal cleanup. Tight tolerances between the punches and the spring-loaded die plate ensure clean cuts while extending the tool’s service life.

The die plate securely clamps metal in place, preventing distortion and keeping your hands safe. Its easy-open design allows for quick adjustments to accommodate various materials. For best results, place a shim of equal thickness to your cutting material on the opposite side to maintain balance.

Versatility

Designed for soft materials up to 16 gauge (1.29mm) when using a mallet and up to 10 gauge (2.59mm) when using a Bonny Doon hydraulic press.
Use a urethane pad (1/16" thick, 95 durometer; not included) under the cutters to reduce noise, support the punches, protect your work surface, and ensure crisp cuts.

Product Details

Dimensions: 3"W x 5"D x 1-1/16"H (76.2 x 127 x 26.99mm)
Brand: Swanstrom
Shipping Weight: 6.314 lbs (2.864kg)
Country of Origin: United States

Features & Maintenance

IMPORTANT: Always position a shim of equal thickness to the material being cut on the opposite side to maintain plate balance and achieve perpendicular cuts.
Use only brass-head mallets to protect the surfaces of your punches when cutting.
Apply Jeweler's Basics® - Cut Ease to cutting edges for smooth, efficient cuts and long-lasting performance.

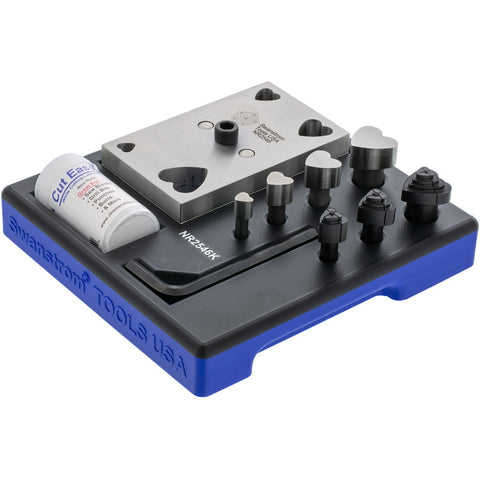

Kit Includes:

Two die plates
Four punches, each 2" (50.8mm) tall:
- 13/32" x 13/32" (10.3 x 10.3mm)
- 19/32" x 19/32" (15.08 x 15.08mm)
- 25/32" x 25/32" (19.84 x 19.98mm)
- 1-1/16" x 1-1/16" (26.99 x 26.99mm)
One Hex wrench

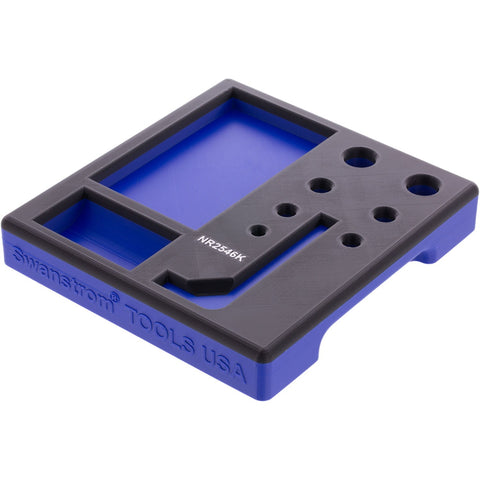

A strong rubber base (6" x 6" x 1/2" / 152.4 x 152.4 x 12.7mm) that conveniently holds the cutter and dies
