Swanstrom - Inch Round Disc Cutter - 1/8" - 1 1/4"

Achieve precise, clean cuts with ease using the Swanstrom Disc Cutter—the top-performing tool in its class. Manufactured in the USA, this disc cutter is built to deliver decades of consistent service.

• Punches smaller than 1" are crafted from 4140 tool steel and case-hardened to 57 HRC.

• The top and bottom plates, along with 1” and larger punches, are made of S7 shock-resistant tool steel, through-hardened to 55 HRC for exceptional durability.

Precision and Performance

The Swanstrom Disc Cutter features precision-ground punches that produce smooth edges with minimal cleanup. Tight tolerances between the punches and the spring-loaded die plate ensure clean cuts while extending the tool’s service life.

The die plate securely clamps metal in place, preventing distortion and keeping your hands safe. Its easy-open design allows for quick adjustments to accommodate various materials. For best results, place a shim of equal thickness to your cutting material on the opposite side to maintain balance.

Versatility

• Ideal for soft materials up to 16 gauge (1.29mm) with a mallet and up to 10 gauge (2.59mm) with a hydraulic press.

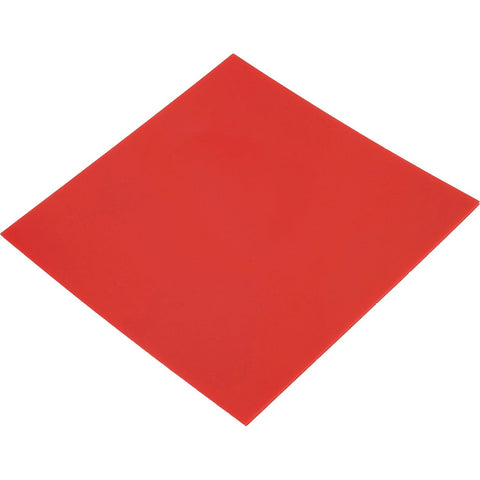

• Use a 1/16" thick, 95-durometer urethane pad (not included) under the cutters to minimize noise, support the tool, protect your work surface, and ensure precise cuts.

Product Details

• Brand: Swanstrom

• Shipping Weight: 6.5 lbs (2.941kg)

• Country of Origin: United States

Features & Maintenance

• IMPORTANT: Always position a shim of equal thickness to the material being cut on the opposite side to maintain plate balance and achieve perpendicular cuts.

• Use only brass-head mallets to strike the punches, preserving their surface integrity.

• Apply Jeweler's Basics® - Cut Ease to cutting edges for smooth, efficient cuts and long-lasting performance.

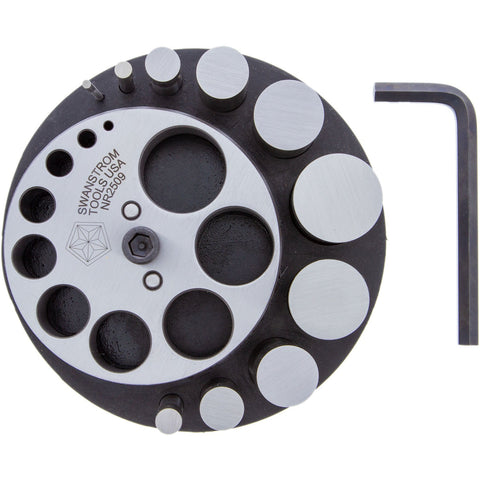

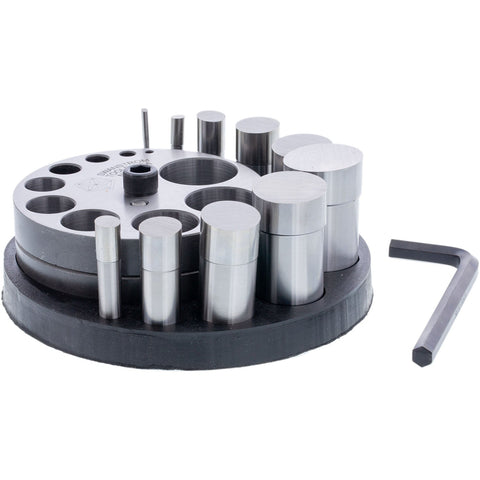

Kit Includes:

• Two die plates (4" dia. x 1-1/4" H)

• 10 punches:

  • 1/8" (3.1mm) dia. (NR25092)

  • 1/4" (6.3mm) dia. (NR250914)

  • 3/8" (9.5mm) dia. (NR250938)

  • 1/2" (12.7mm) dia. (NR250912)

  • 5/8" (15.9mm) dia. (NR250958)

  • 3/4" (19mm) dia. (NR250934)

  • 7/8" (22.2mm) dia. (NR250978)

  • 1" (25.4mm) dia. (NR250910)

  • 1-1/8" (28.6mm) dia. (NR2509118)

  • 1-1/4" (31.8mm) dia. (NR2509114)

• One hex wrench

• One strong rubber base (5-7/8" dia.) for secure cutter and die storage (NR25091)
