Swanstrom® - Small Circle SawPlate Clamp (NR5005)

$50.08

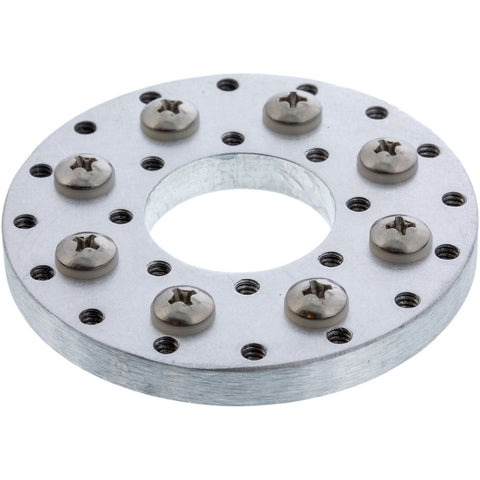

The Swanstrom® Tools Small Circle SawPlate Clamp is a precision-engineered aluminum clamp designed to securely hold flat stampings and metal pieces. Featuring an open center and 33 holes, it allows for customizable positioning, making it an essential tool for sawing, piercing, and detailed metalwork.

This clamp is designed for use with the Swanstrom® SawPlate (available separately) but can also be used independently to help reduce hand and finger fatigue when working with small components.

Key Features

✔ 33-hole design for versatile holding configurations.
✔ Open center allows for easy access and precise manipulation.
✔ Delrin® washers under each screw prevent marring your workpiece.
✔ Ergonomic design minimizes hand strain during intricate tasks.

Specifications

Dimensions: 0.41" H x 2.5" dia. (10.45 x 63.5mm)
Brand: Swanstrom
Shipping Weight: 1.972 ounces (55.9g)
Country of Origin: United States
Inside Diameter: 1" (25.4mm)
Max Thickness: 0.197" (5mm), based on screw opening height

Usage Tips & Maintenance

For repetitive cutting, keep one clamp screw in place when removing a finished piece to maintain positioning.
Not all clamp screws need to be used—adjust based on the shape and size of your workpiece.
Screws will overlap the edges of your workpiece by approximately 2mm.

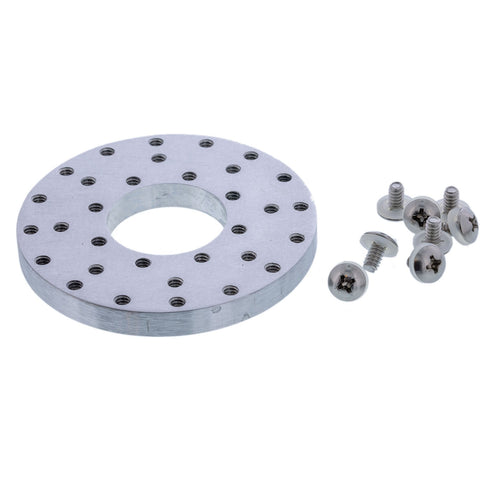

Included in the Set

✔ One hex key
✔ Eight steel screws with Delrin® washers
